20m-100m Metric & Imperial Open Reel Long Fiberglass Tape Measure

Item: FGT-J1

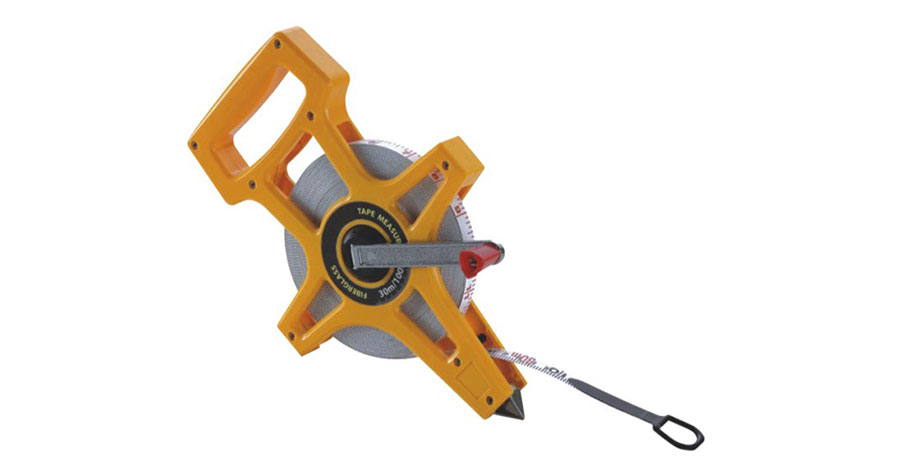

Product Name: 20m-100m Metric & Imperial Open Reel Long Fiberglass Tape Measure

picture (image) of J1.jpg

13mm width highly reinforced blade.



MODEL SPEC.(m/ft) QTY./CTN MEAS.(mm) G.W/N/W(kg)
J201 20/66 24 530*370*270 10.5/9.5
J301 30/100 24 500*300*400 14/13
J501 50/165 24 500*335*490 19/18
J601 60/200 12 480*335*440 15/14
J901 90/300 12 480*335*440 16/15
J1001 100/330 12 575*335*440 18/17



Features of  20m-100m Metric & Imperial Open Reel Long Fiberglass Tape Measure

Open reel fiberglass tapes are perfect for all of your long measuring needs.  If you’re measuring alone, the metal catch hook is set at zero, so there’s no need for a correction. These are very popular with users that primarily do interior measurements.

  • Double coated blade protects markings and graduations from chemical and mechanical abrasions.
  • The double coated fiberglass blade is waterproof and dirt resistant.
  • Shock absorbing TPR bumpers.
  • Versatile end hook.
  • Heavy duty ABS frame with comfortable TPR hand grip. The two-material grip is comfortable to use.
  • Dual scale blade allowing measurements in both Inch and metric.
  • Durable hand crank for easy winding of measuring tape
  • Bottom features a metal spike for added measuring stability
  • Designed to withstand more wear and tear than any other kind of measuring tape, more durable than steel tapes, more functional than cloth tailor tapes.
  • Soft, avoid injury or cuts, safe and healthy for human body.



Types of Zero Point of Long Tapes Blade Structure of Fiberglass Tape
Types of Zero Point of Long Tapes Blade Structure of Fiberglass Tape
  • A: Zero point at outside of ring
  • B: Zero point at outside of ring
  • C: Zero point at outside of ring
  • D: Zero point at inside of hook
  • E: Zero point at inside of hook
  • F: Zero point at end fitting and inside of fold-in claw
  • G: Zero point at end fitting and inside of fold-in claw
  • H: Zero point approximate 10cm from the end fitting
  • L: Zero point at end fitting and inside of fold-in claw
  • A: Fiberglass stands
  • B: Permanent adhesion
  • C: PVC coating
  • D: Printing
  • E: Transparent PVC
  • F: Glare-proof embossed



Double-coated fiberglass tapes feature a transparent PVC coating which is able to resist wear up to 40 tims more than other non-coating fibreglass tapes.



Abrasion Test Result of Eastern Fiberglass Tape

abrasion test result of eastern fiberglass tape

Eastern double coated fiberglass tapes resist 10,000 cycles (20,000 scrubs) . Other A grade brand fiberglass tape measures showing signs of wear and fading of the printing at 250 cycles (500 scrubs).

Procedure of Fiberglass Tape Measures

High intensity fiberglass - Coating with glue - Drying - Extruding - Embossing - Intensity Testing - Printing Screen - Welding heads & ends - Accuracy tesing - Packing



Minimal division value Max.permissible tolerance
1≤1 ±0.3
1< i ≤10 ±1
10< i ≤100 ±1.5



For Max.permissible tolerance see the table, if the length is within the minimal division value.

The Max.permissible tolerance is calculated as per the following formula,if the length is bigger than the minimal division value:

---Max.permissible tolerance in mm.
=±(1.2+0.8L)

L-Length value, The bigger and most approx . Round-numbered value in meter is taken in case a measured length is less than a round-numbered multiple of onemeter. The permissible to combined measuring tool is used.



Just 1000pcs get wholesale price of 20m-100m Metric & Imperial Open Reel Long Fiberglass Tape Measure made in China from Eastern - the best factory for distributor, importer, supplier and wholesaler.
