Home - Products - Fiberglass Measuring Tape

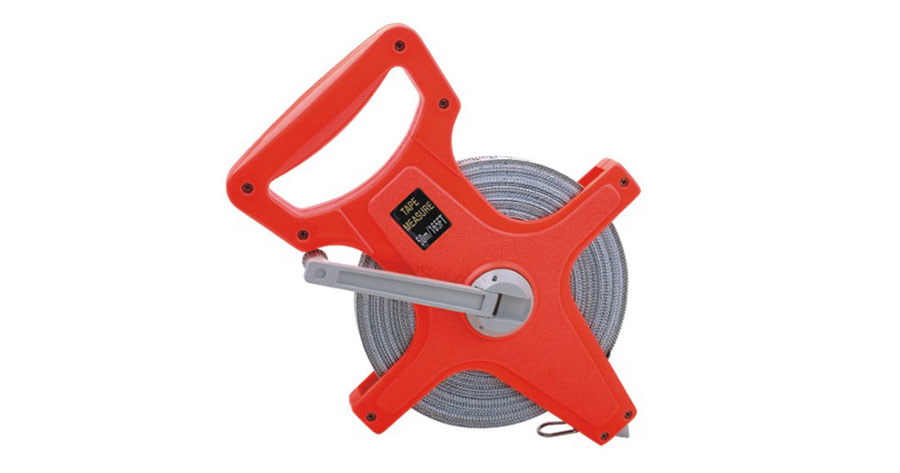

20m-120m Impact-Resistant ABS Frame Long Fiberglass Measuring Tape

Item: FGT-J2
Product Name: 20m-120m Impact-Resistant ABS Frame Long Fiberglass Measuring Tape

13mm width highly reinforced blade.

MODEL	SPEC.(m/ft)	QTY./CTN	MEAS.(mm)	G.W/N.W(kg)
J202	20/66	20	435340280	8/6
J252	25/83	20	445420300	10/8
J302	30/100	20	445420300	13/11
J502	50/165	20	520480360	16/14
J602	60/198	10	480460360	9/7
J752	75/248	10	480460360	10/8
J902	90/297	10	480460360	11/9
J1002	100/300	10	480460360	12/10
J1202	120/396	10	480460360	14/12

Features of 20m-120m Impact-Resistant ABS Frame Long Fiberglass Measuring Tape

Open reel fiberglass tapes are perfect for all of your long measuring needs. If you’re measuring alone, the metal catch hook is set at zero, so there’s no need for a correction. These are very popular with users that primarily do interior measurements.

Double coated blade protects markings and graduations from chemical and mechanical abrasions.
The double coated fiberglass blade is waterproof and dirt resistant.
Shock absorbing TPR bumpers.
Versatile end hook.
Heavy duty ABS frame with comfortable TPR hand grip. The two-material grip is comfortable to use.
Dual scale blade allowing measurements in both Inch and metric.
Durable hand crank for easy winding of measuring tape
Bottom features a metal spike for added measuring stability
Designed to withstand more wear and tear than any other kind of measuring tape, more durable than steel tapes, more functional than cloth tailor tapes.
Soft, avoid injury or cuts, safe and healthy for human body.

Types of Zero Point of Long Tapes

Blade Structure of Fiberglass Tape

A: Zero point at outside of ring
B: Zero point at outside of ring
C: Zero point at outside of ring
D: Zero point at inside of hook
E: Zero point at inside of hook
F: Zero point at end fitting and inside of fold-in claw
G: Zero point at end fitting and inside of fold-in claw
H: Zero point approximate 10cm from the end fitting
L: Zero point at end fitting and inside of fold-in claw

A: Fiberglass stands
B: Permanent adhesion
C: PVC coating
D: Printing
E: Transparent PVC
F: Glare-proof embossed

Double-coated fiberglass tapes feature a transparent PVC coating which is able to resist wear up to 40 tims more than other non-coating fibreglass tapes.

Abrasion Test Result of Eastern Fiberglass Tape

abrasion test result of eastern fiberglass tape

Eastern double coated fiberglass tapes resist 10,000 cycles (20,000 scrubs) . Other A grade brand fiberglass tape measures showing signs of wear and fading of the printing at 250 cycles (500 scrubs).

Procedure of Fiberglass Tape Measures

High intensity fiberglass - Coating with glue - Drying - Extruding - Embossing - Intensity Testing - Printing Screen - Welding heads & ends - Accuracy tesing - Packing

Minimal division value	Max.permissible tolerance
1≤1	±0.3
1< i ≤10	±1
10< i ≤100	±1.5

For Max.permissible tolerance see the table, if the length is within the minimal division value.

The Max.permissible tolerance is calculated as per the following formula,if the length is bigger than the minimal division value:

---Max.permissible tolerance in mm.
=±(1.2+0.8L)

L-Length value, The bigger and most approx . Round-numbered value in meter is taken in case a measured length is less than a round-numbered multiple of onemeter. The permissible to combined measuring tool is used.

Just 1000pcs get wholesale price of 20m-120m Impact-Resistant ABS Frame Long Fiberglass Measuring Tape made in China from Eastern - the best factory for distributor, importer, supplier and wholesaler.
