5-50M Explosion-proof Oil Measuring Tape for Tankers and Tanks

Item: LOMT-GJ06
Product Name: 5-50M Explosion-proof Oil Measuring Tape for Tankers and Tanks

Eastern is a professional factory specialized in manufacturing wide range of oil measuring tapes, plumb bobs, and accessories.


  • Material: ABS handle,  aluminium case flame, stainless steel tape, brass drop.
  • Color: white aluminium flame, black ABS handle.
  • Specification: 10m/33ft, 15m/50ft, 20m/66ft, 25m/83ft, 30m/100ft, 50m/165ft.
  • Logo: Eastern. accept OEM.
  • Three types of stainless steel blades are suitable for the tape :
    a)  White or yellow polymer resin painted steel tape blade (lacquered steel blade).
    b)  Black oxide steel blade (black etched blade).
    c)  Stainless steel etched blade.
  • Standard drop (plumb bob) is modle 25-1 flat brass drop (also called flat brass weight, plumb bob), we also make the drop according to customer's inquiry.
  • Two side graduation tape blade, one side is MM graduation and another side is inch graduation.
  • Heavy duty aluminium frame.
  • Material of stainless steel tape is 0.20mm, material of white and black tape is 0.18mm.

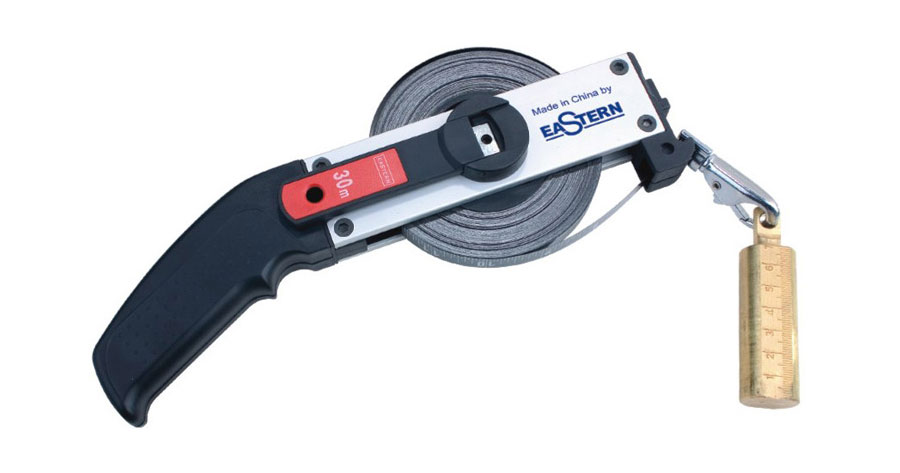

picture (image) of GJ06-explosion-proof-oil-measuring-tape.jpg

Advantage Features of Stainless Steel Oil Measuring Tapes

  • Eastern oil gaugeing tapes are strong and durable with a corrosion resistant frame. The frames come with safety handle.
  • Easy operation.
  • The oil tapes with black oxide blade and stainless etched blade are oil and acid resistant.
  • The oil gauging tapes made of stainless steel and carbon steel have accurate calibration and strong corrosion resistance.
  • Oil gauge tape blades have an abrasion and chemical resistant coating.
  • Anti-static materials are used for ruler frame, handle, core wheel and ruler drop.


Blade Types Available for Eastern Oil Gauging Tapes

White or Yellow Polymer Resin Painted Blade (Lacquered Steel Blade)
Black Oxide Blade (Black Etched Blade)
Etched Stainless Steel Blade


Read More information about Oil Tape Blade

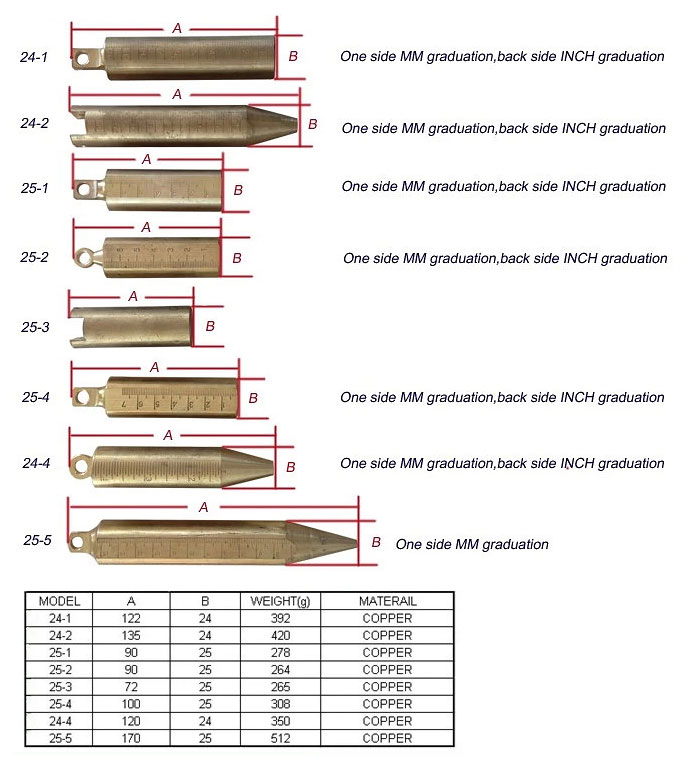

Flat or Sharp Brass Drop (Copper Weight, Plumb Bob) for LOMT GJ06 Oil Gauge Tapes

Flat or Sharp Brass Drop (Copper Weight, Plumb Bob) for Oil Gauge Tapes

Application of Measuring Tape

Explosion-proof oil tank measuring gauging tape are widely used for oil mining industry

Oil tape is suitable for measuring the liquid level height or depth of petroleum and other liquid products in various containers, such as oil tankers and oil storage tanks. It is also suitable for measuring the depth of water level at the bottom of containers.

Package for Oil Gauging Tape

One piece in plastic bag, then in a color inner box, 10pcs in one export carton.

Specification Tape blade Art. No. QTY/CTN(pcs) G.W/N.W Meas.(cm)
5m/17ft white enamel tape 10010101 10 8/7 49.5x34.5x17.5
5m/17ft black oxide tape 10010102 10 8/7 49.5x34.5x17.5
5m/17ft stainless steel tape 10010103 10 8/7 49.5x34.5x17.5
10m/33ft white enamel tape 10010104 10 9/8 49.5x34.5x17.5
10m/33ft black oxide tape 10010105 10 9/8 49.5x34.5x17.5
10m/33ft stainless steel tape 10010106 10 9/8 49.5x34.5x17.5
15m/50ft white enamel tape 10010107 10 10/9 49.5x34.5x17.5
15m/50ft black oxide tape 10010108 10 10/9 49.5x34.5x17.5
15m/50ft stainless steel tape 10010109 10 10/9 49.5x34.5x17.5
20m/66ft white enamel tape 10010110 10 11/10 49.5x34.5x17.5
20m/66ft black oxide tape 10010111 10 11/10 49.5x34.5x17.5
20m/66ft stainless steel tape 10010112 10 11/10 49.5x34.5x17.5
25m/83ft white enamel tape 10010113 10 12/11 49.5x34.5x17.5
25m/83ft black oxide tape 10010114 10 12/11 49.5x34.5x17.5
25m/83ft stainless steel tape  10010115 10 12/11 49.5x34.5x17.5

white enamel tape

10010116 10 13/12 49.5x34.5x17.5
30m/100ft black oxide tape 10010117 10 13/12 49.5x34.5x17.5
30m/100ft stainless steel tape 10010118 10 13/12 49.5x34.5x17.5
50m/165ft white enamel tape 10010119 10 17/16 49.5x34.5x17.5
50m/165ft black oxide tape 10010120 10 17/16 49.5x34.5x17.5
50m/165ft stainless steel tape 10010121 10 17/16 49.5x34.5x17.5



Accuracy of Oil Measuring Tape LOMT GJ06 Package of Oil Measuring Tape



Innage Oil Gauging Tapes and Outage Oil Gauge Measuring Tapes

There are 2 oil tapes to manually measurre the level of liquids in a large container using an oil gauging tape – Innage or Outage.

There are three basic operations that are conducted by tank gauging tape:

  1. How much liquid is already in the container? (Innage)
  2. How much more liquid can be put in the container? (Outage)
  3. When the liquid is oil, how much water has displaced oil in the bottom of the container?


Read More information about Oil Innage and Outage Tape
