5-50M Stainless Steel Oil Tank Sounding Tape Measure with Plumb Bob

Item: LOMT-GJ08
Product Name: 5-50M Stainless Steel Oil Tank Sounding Tape Measure with Plumb Bob

Eastern is a professional factory specialized in manufacturing wide range of oil tank sounding  tape measures, plumb bobs, and accessories.


  • Material: ABS handle,  aluminium case flame, stainless steel tape, brass plumb bob..
  • Color: white aluminium flame, red ABS handle.
  • Specification: 10m/33ft, 15m/50ft, 20m/66ft, 25m/83ft, 30m/100ft, 50m/165ft.
  • Logo: Eastern. accept OEM.
  • Three types of stainless steel blades are suitable for the tape :
    a)  White or yellow polymer resin painted steel tape blade (lacquered steel blade).
    b)  Black oxide blade (black etched blade).
    c)  Stainless steel etched blade.
  • Standard drop (plumb bob) is modle 25-1 flat brass drop (also called flat brass weight, plumb bob), we also make the drop according to customer's inquiry.
  • Two side graduation tape blade, one side is MM graduation and another side is inch graduation.
  • Heavy duty aluminium frame.
  • Material of stainless steel tape is 0.20mm, material of white and black tape is 0.18mm.
picture (image) of GJ08-steel-oil-tank-sounding-tape-measure.jpg

Advantage Features of Stainless Steel Oil Sounding Tape Measure

  • Eastern oil gaugeing tapes are strong and durable with a corrosion resistant frame. The frames come with safety handle.
  • Easy operation.
  • The oil tapes with black oxide blade and stainless etched blade are oil and acid resistant.
  • The oil gauging tapes made of stainless steel and carbon steel have accurate calibration and strong corrosion resistance.
  • Oil gauge tape blades have an abrasion and chemical resistant coating.
  • Anti-static materials are used for ruler frame, handle, core wheel and ruler drop.


Blade Types Available for Eastern Oil Gauging Tapes

White or Yellow Polymer Resin Painted Blade (Lacquered Steel Blade)
Black Oxide Blade (Black Etched Blade)
Etched Stainless Steel Blade


Read More information about Oil Tape Blade

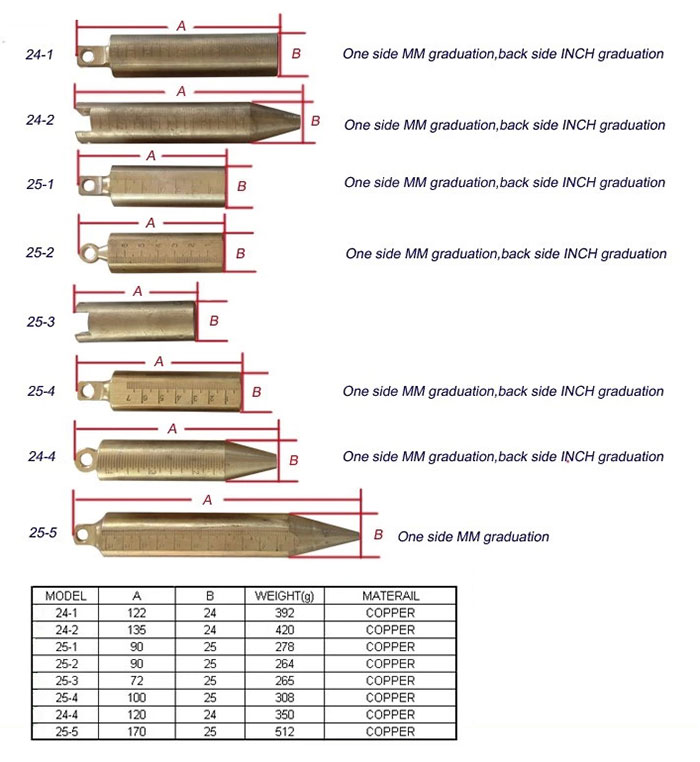

Flat or Sharp Brass Drop (Copper Weight, Plumb Bob) for LOMT GJ08 Oil Gauge Tapes

Plumb bob material: stainless steel or brass (copper) , Drop shape: flat or sharp.

Application of Oil Sounding Tape Measure

Explosion-proof oil tank measuring gauging tape are widely used for oil mining industry

Oil tape is suitable for measuring the liquid level height or depth of petroleum and other liquid products in various containers, such as oil tankers and oil storage tanks. It is also suitable for measuring the depth of water level at the bottom of containers.

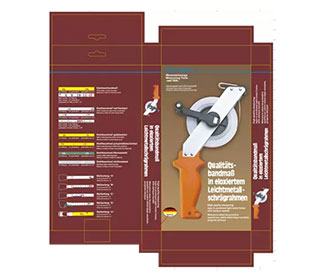

Package for Oil Gauging Tape

One piece in plastic bag, then in a color inner box, 10pcs in one export carton.


Specification Tape blade Art. No. QTY/CTN(pcs) G.W/N.W Meas.(cm)
5m/17ft white enamel tape 10010301 10 8/7 39.5x34.5x17.5
5m/17ft black oxide tape 10010302 10 8/7 39.5x34.5x17.5
5m/17ft stainless steel tape 10010303 10 8/7 39.5x34.5x17.5
10m/33ft white enamel tape 10010304 10 9/8 39.5x34.5x17.5
10m/33ft black oxide tape 10010305 10 9/8 39.5x34.5x17.5
10m/33ft stainless steel tape 10010306 10 9/8 39.5x34.5x17.5
15m/50ft white enamel tape 10010307 10 10/9 39.5x34.5x17.5
15m/50ft black oxide tape 10010308 10 10/9 39.5x34.5x17.5
15m/50ft stainless steel tape 10010309 10 10/9 39.5x34.5x17.5
20m/66ft white enamel tape 10010310 10 11/10 39.5x34.5x17.5
20m/66ft black oxide tape 10010311 10 11/10 39.5x34.5x17.5
20m/66ft stainless steel tape 10010312 10 11/10 39.5x34.5x17.5
25m/83ft white enamel tape 10010313 10 12/11 39.5x34.5x17.5
25m/83ft black oxide tape 10010314 10 12/11 39.5x34.5x17.5
25m/83ft stainless steel tape  10010315 10 12/11 39.5x34.5x17.5

white enamel tape

10010316 10 13/12 39.5x34.5x17.5
30m/100ft black oxide tape 10010317 10 13/12 39.5x34.5x17.5
30m/100ft stainless steel tape 10010318 10 13/12 39.5x34.5x17.5
50m/165ft white enamel tape 10010319 10 17/16 39.5x34.5x17.5
50m/165ft black oxide tape 10010320 10 17/16 39.5x34.5x17.5
50m/165ft stainless steel tape 10010321 10 17/16 39.5x34.5x17.5



Accuracy of Oil Measuring Tape LOMT GJ08 Package of Oil Gauge Tape
Accuracy of Oil Measuring Tape LOMT GJ08 Package of Oil Gauge Tape



Innage Oil Gauging Tapes and Outage Oil Gauge Measuring Tapes

There are 2 oil tapes to manually measurre the level of liquids in a large container using an oil gauging tape – Innage or Outage.

There are three basic operations that are conducted by tank gauging tape:

  1. How much liquid is already in the container? (Innage)
  2. How much more liquid can be put in the container? (Outage)
  3. When the liquid is oil, how much water has displaced oil in the bottom of the container?


Read More information about Oil Innage and Outage Tape
